CCTV Camera Network
/

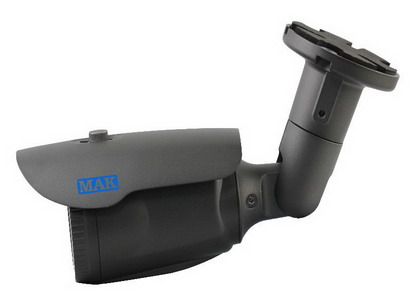

CCTV Day/Night Color Camera-700TVL
|
|
|
|
Code:
|
000186
|
Location:
|
AUS
|
|
Barcode:
|
|
|
Model:
|
LIU90HM
|
|
Price:
|
159.00
AUD
|
Stock:
|
3.00
Set
|
|
Use For:
|
CCTV System
|
|
Material:
|
700TV Line 1/3"CMOS, NTSC/PAL, CDS AUTO Control
|
|
Note:
|
Weartherproof, 60M D5-72 Infrared LED
|
|
|
|
|
|
Model | LIU90HM | Pick Up Element | 1/3” CMOS | Horizontal Resolution | 700 TV Line | Minimum Illumination | 0.001Lux/F1.2 | S/N Ratio | More than 46 dB | Scanning System | 2:1 Interface | Synchronous System | Internal, Negative sync. | Auto Electronic Shutter | NTSC: 1/60s~1/1000, 000s, PAL: 1/50s~1/1000, 000s | Gama Characteristic | 0.45 | IR Distance | 60 Meters (with Φ5X72PCS Infrared LED) | IR Status | Under 10 Lux by CDS | IR Power On | CDS Auto Control | Video Output | 1 Vpp, 75Ω | Auto Gain Control | Auto | Power/Current | DC12V (±10%)/ 500 mA | Lens | 2.8-12mm Manual Zoom Lens | Dimensions (mm) | 298(W) x 100(H) x 106(D) | Weight (g) | 1700 | Storage Temperature | -30 ~ +60⁰C RH95% MAX | Operating Temperature | -10 ~ +50⁰C RH95% MAX |
|
|
Product Size:
|
|
|
Size 1: (mm)
|
298 MM
|
Weight (Kg):
|
|
Size 2: (mm)
|
100 MM
|
0.0000
|
|
Size 3: (mm)
|
D106 MM
|
|
|
